DZD3-5,DZD3-10,DZD3-20,DZD3-40,DZD3-50,DZD3-80,DZD3-100,DZD3-160,DZD3-220,干式单片电磁制动器 ,生产厂家,价格

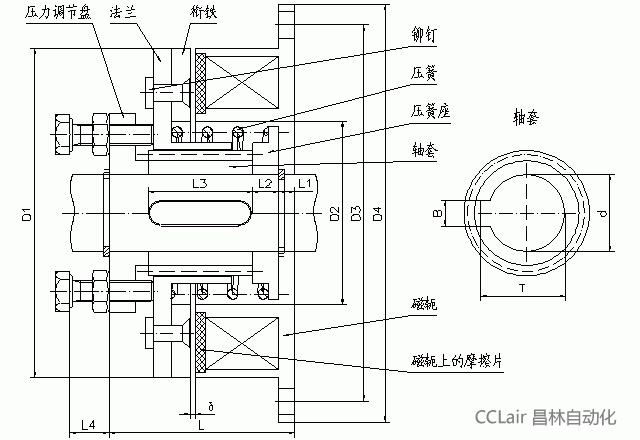

| 规格(NM) |
电机机座号 |
d |
B |
T |
D1 |
D2 |
D3 |
D4 |
L |
L1 |
L2 |
L3 |
L4 |
δ |
| DZD3-5 |
YEJ71 |
14.8 |
5 |
17.1 |
63 |
35 |
72 |
80 |
35 |
3 |
5 |
20 |
6～5 |
0.2 |
| DZD3-10 |
YEJ80 |
19.8 |
6 |
22.6 |
80 |
42 |
90 |
100 |
40 |
4 |
6 |
20 |
6～5 |
0.2 |
| DZD3-20 |
YEJ90 |
24.8 |
8 |
28.1 |
100 |
52 |
112 |
125 |
50 |
5 |
10 |
25 |
6～8 |
0.2 |
| DZD3-40 |
YEJ100 |
29.5 |
8 |
32.8 |
125 |
62 |
137 |
150 |
55 |
5 |
10 |
25 |
6～7 |
0.4 |
| DZD3-50 |
YEJ112 |
29.5 |
8 |
32.8 |
135 |
62 |
150 |
160 |
55 |
5 |
10 |
25 |
6～7 |
0.4 |
| DZD3-80 |
YEJ132 |
39.5 |
12 |
42.8 |
160 |
80 |
175 |
190 |
56 |
6 |
9 |
30 |
6～12 |
0.4 |
| DZD3-100 |
|
39.5 |
12 |
42.8 |
180 |
80 |
195 |
210 |
58 |
6 |
11 |
30 |
6～13 |
0.4 |
| DZD3-160 |
YEJ160 |
44.5 |
12 |
47.8 |
200 |
100 |
215 |
230 |
61 |
6 |
10 |
35 |
6～10 |
0.5 |
| DZD3-220 |
|
44.5 |
12 |
47.8 |
230 |
100 |
245 |
260 |
64 |
9 |
10 |
35 |
6～10 |
0.5 |
